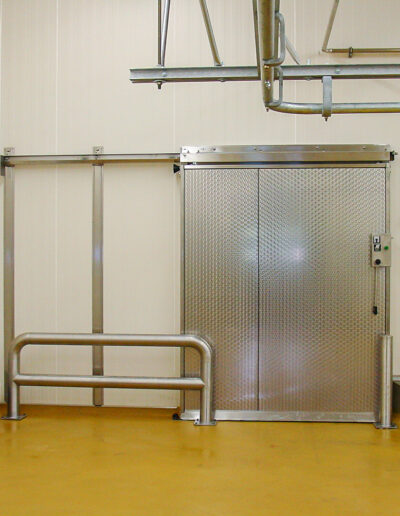

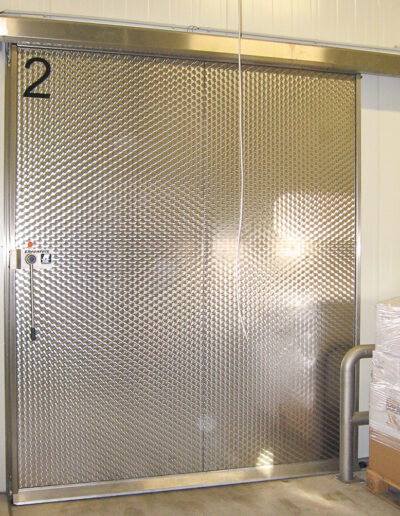

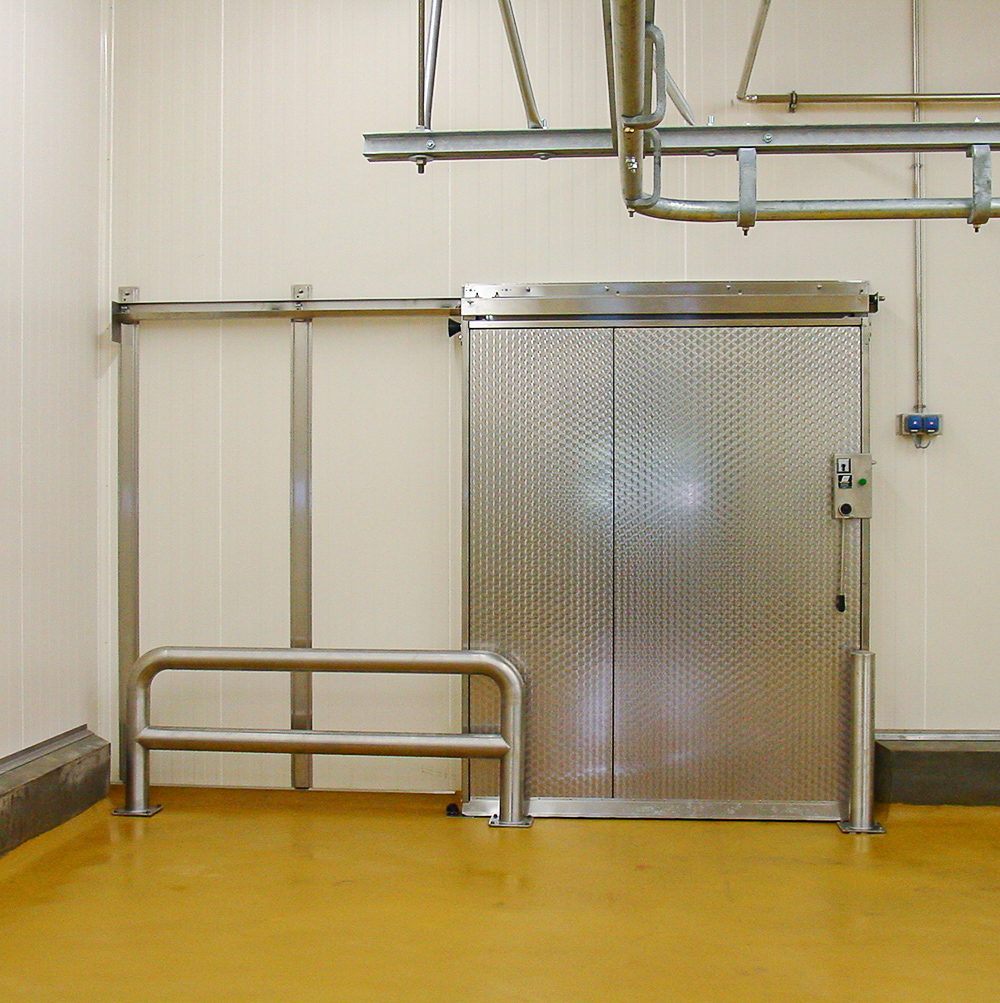

Freezer Sliding Door ETS 150

  • Sturdy & hygienic: stainless steel track (4 mm track, rollers, handle and lock)

  • Easy to handle: lever arm for opening

  • Exact to adjust: free movement – the door seals not earlier than 1,5 cm before its final position

  • Save maintenance costs: electro automatic made for extensive use (electronic safety circuit, no susceptible contact tube)

  • Sturdy: a rammer shield protects front and backside

Frame

  • 1,5 mm stainless steel
  • Welded
  • Adjustable guiding plugs
  • Heating 220 Volt/50Hz
  • Integrated stretching joint

Iron Fittings

  • Stainless steel track
  • Stainless steel hanging
  • Stainless steel wheels
  • Stainless steel lever handle

Variations

  • PZ Lock
  • 2 leaves
  • Frame for PU panel
  • E-Automatic with electronic safety circuit

Leaf

  • 120 mm PU foamed
  • Overlaying
  • 4 sides rubber
  • 2,0 mm rammer shield on front and back

Surface

  • Stainless steel
  • Aluminium
  • Plastic covered white RAL 9002
