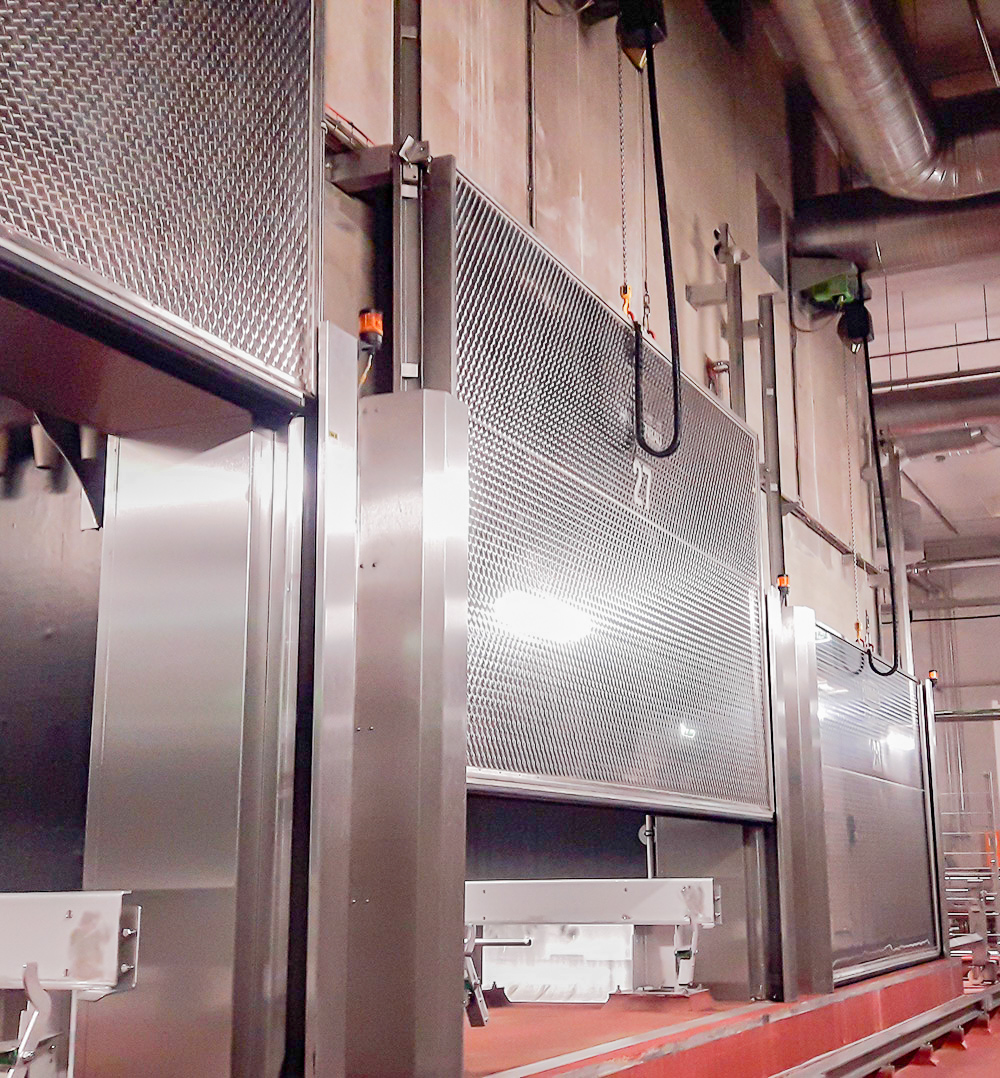

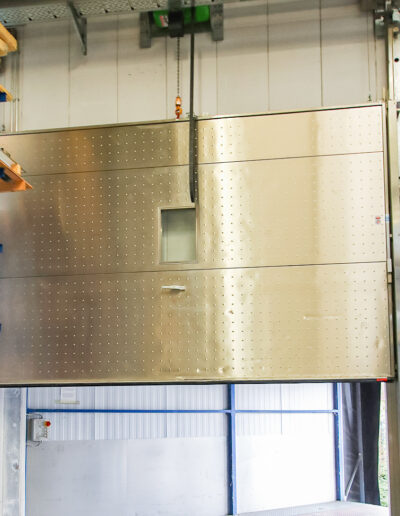

Lift Gate ETH 150

  • Application: For ripening rooms, chiller rooms and freezer rooms.
  • Safety: Double drop guard (secured chain drive and additional independent drop guard)
  • Running gear: High-quality stainless steel running gear (4.0 mm rails, running wheels, suspension), therefore durable
  • Adjustment: Sealing takes place 15 mm before the closing position due to the door’s own weight, therefore exactly adjustable and freedom of movement
  • Sealing: Door leaf in a rigid unit (no roll-up mechanism), therefore extremely tight
  • Maintenance costs: Maintenance costs are saved, as the automatic electric system is designed for intensive use and the self-monitoring safety edge is integrated.


  • 1.5 / 2.0 mm stainless steel
  • Welded
  • Adjustable pressure and guide cams
  • For TK heating with 230 volts


  • Stainless steel running track
  • Door suspension completely in stainless steel
  • Rollers in stainless steel


  • Installation in masonry / PU
  • With escape hatch
  • With substructure
  • Constructions adapted to the structural situation


  • 120 mm PU foamed
  • Overlapping
  • Circumferential rubber seal
  • 2x 2.0 mm impact shield at the bottom


  • Stainless steel
  • Plastic coated sheet metal white
  • Ground on request
