Chiller Hinged Door KE 15.070 and KE 15-Gastro2

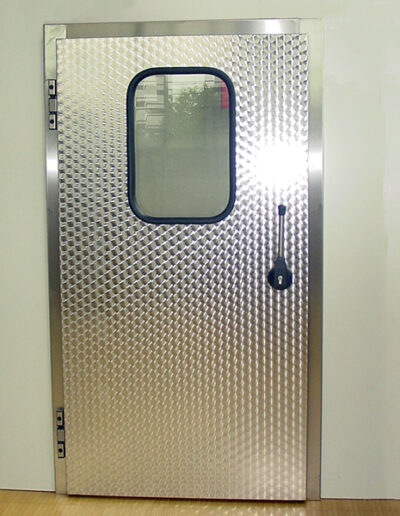

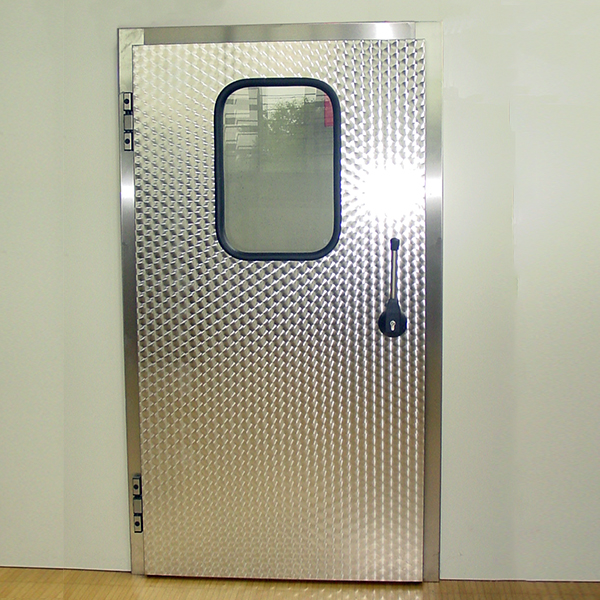

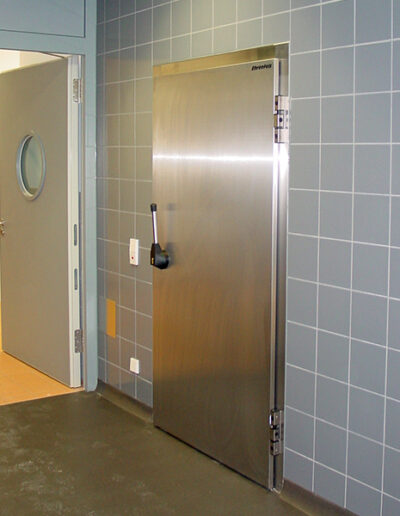

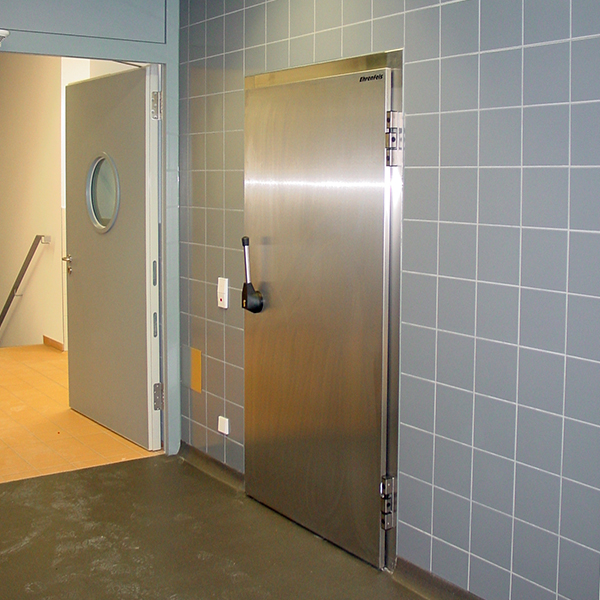

KE 15.070
- Sturdy & hygienic: welded total stain frame (1,5 mm)
- Robust: pressing handle in metal: chromium-plated or stainless steel
- Easy to change & save maintenance costs: all metal fittings screwed, not riveted
- Resistent to corrosion: all metal fitting in stainless steel
- Long-living: hidden lock in frame, respectively in leaf
Frame
- 1,5 mm stainless steel
- Welded
Iron Fittings
- Stainless steel pressing handle
- Stainless steel hinges (rising)
- PZ-Lock
Variations
- Window
- Top for rail transport system

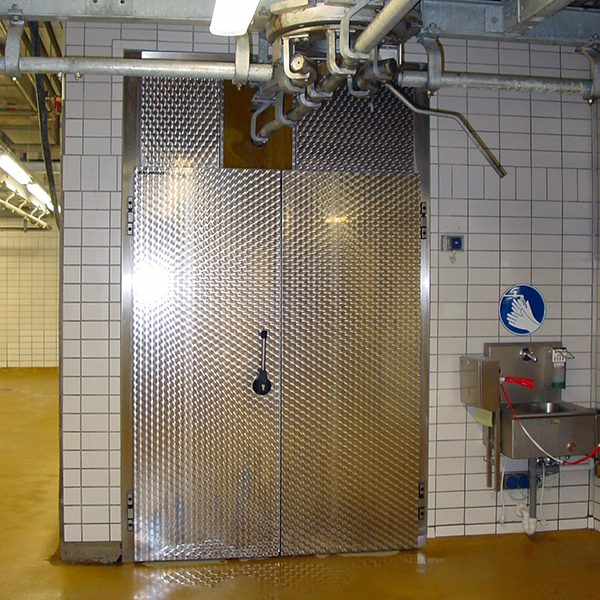

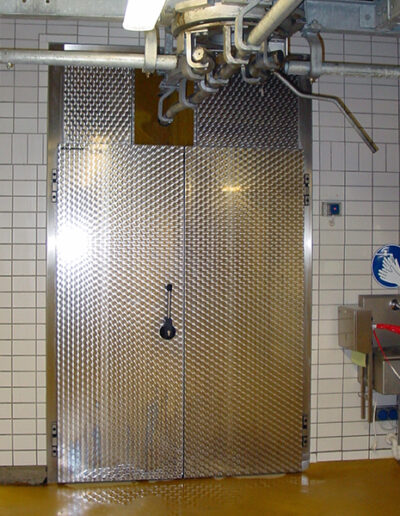

- 2 leaves
- Frame for PU Panel
Leaf
- 85 mm PU foamed
- Overlaying
- 4 sides rubber
Surface
- Stainless steel
- Aluminium
- Plastic covered white RAL 9002

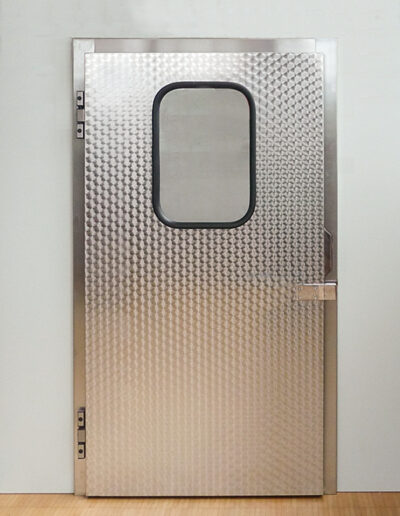

KE 15-Gastro2
- Safety: Adjustable hinges made of stainless steel, an adjustable top door closer and its closing damping make corrosion and breakage almost impossible and the door very easy to adjust.
- Stability: protruding parts (press handles) on the door leaf are eliminated
- Hygiene: Welded stainless steel frame made of 1.5 mm, therefore hygienic and stable, no door leaf mounting and installation in connection with a press handle
- Maintenance costs: Maintenance costs are saved as all fittings are screwed, not riveted (hinges, handle, top door closer) and therefore easy to replace
- Noise: Very quiet and durable due to 4-sided rubber
Frame
- 1,5 mm stainless steel
- Welded
Iron Fittings
- Stainless steel pressing handle
- Stainless steel hinges (rising)
- Top door closer, concealed mounted, opening and closing damping adjustable
Variations
- Window
- Constructions adapted to the structural situation
Leaf
- 85 mm PU foamed
- Overlaying
- 4 sided rubber
Surface
- Stainless Steel
- Plastic coated sheet aluminium white
- special colours / surfaces on request
